Elevator Air Conditioner

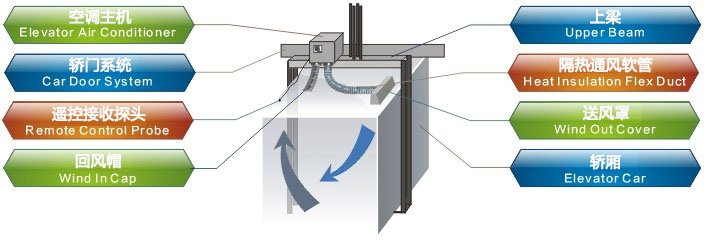

Elevator air conditioner installing brief：

1．Air conditioner main machine installed directly on the elevator upper beam, or fix with rack to the upper beam.
2．Return air from the original elevator fan hole (or open a new circular hole) from the elevator car.
3．Cold air go through the original fan hole (or open a new rectangular hole) into the car by heat insulating duct.
4．Insulated cold-channel process between cartop and ornament ceiling must be done to prevent the formation of a condensation water on the air outlet.
5．The remote receive probe pulled into car and fixed.
6．Set the auto on/off time on the elevator air conditioner main machine, and set the air conditioning operation mode, temperature, wind speed on the remote controller, press the remote control "programmed" button, air conditioner enter the program-controlled automatic air-conditioner running.

Elevator air conditioner maintenance

1．Regular cleaning three filters, once every 30 days is recommended.
2．Regularly check the temperature and noise inside the elevator car.
3．Regular inspection by designated person.
4．Each year before use, clean the air conditioner condenstion water pumps, and replace the external pump filter material.
5．In case of abnormal operation, air conditioner should be immediately shut down and resort to professional for examination.
